High Performance Fanless Embedded System with 2nd Generation Intel® Core™ i7/i5/i3 Processors
   Features


2nd Gen Intel® Core™ i7/i5/i3 or Celeron® mobile processors for TANK-700
  2nd Gen Intel® Core™ i7/i5/i3 Celeron® and Pentium® desktop processors for TANK-720
Intel® HD graphics supports H.264/AVC-MPEG2/VC1, DirectX 10.1 and OpenGL 3.0
On-board 2GB DDR3 memory and one DDR3 SO-DIMM slot (system max. 8GB)
Dual combo (10/100/1000 baseT(X) or 1000 baseSFP slot) Gigabit LAN ports, supporting Intel® AMT 7.0
Supports 8-channel audio/video capture and dual display by VGA/HDMI
Supports two USB 3.0 ports, four USB 2.0 ports, one SATA 6Gb/s port, one CAN-bus port and eight COM ports (four with isolation)
Dual-band 2.4/5GHz 802.11a/b/g/n 3T3R MIMO Wi-Fi for high speed wireless transmission
Redundant dual DC power input (9V ~ 36V)
CAN-bus interface with isolation

   Fanless Solution


The TANK-700/720 series focus on the best components that generate less heat, but maintain high system performance. With the fanless design, the TANK-700/720 series reduces system failure caused by fans and extends the lifetime of the device. Fanless Solution

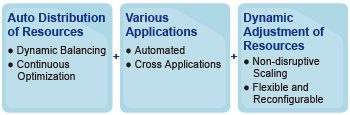

   Intel® Virtualization Technology


Intel® Virtualization Technology (Intel® VT) allows multiple, independent operating systems to run simultaneously on a single system. This entire "package" of virtual hardware - CPU, memory, NIC, OS and applications--is turned into a single software file that can be utilized as easily as using file copy and paste. Intel® VT brings an entirely new level of efficiency and flexibility to IT environments. Intel® Virtualization Technology
Intel® Virtualization Technology

   High Performance


High Performance High Performance
High Performance

   Fast Network Communication


Dual Combo (SFP Fiber/RJ-45) Gigabit LAN Dual Combo (SFP Fiber/RJ-45) Gigabit LAN
The TANK-700/720 series adopts dual combo (SFP Fiber/RJ-45) Gigabit LAN designed for long-distance networking. It is used in long distance network environments where an Ethernet cable would be unable to provide adequate coverage.

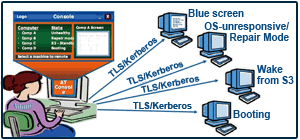

Intel® 82579 PHY with Intel® AMT 7.0 Supported Intel® 82579 PHY with Intel® AMT 7.0 Supported
On the Intel® Core™ i7/i5/i3 hardware architecture, Intel® 82579 PHY Gigabit chipset and Intel® Active Management Technology 7.0 (AMT 7.0), IEI developed the iEZman program, which allows users to remotely control devices and perform administrative tasks such as wake-on LAN, access, diagnostics and power on/off.

   Dual-Band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n 3T3R MIMO Design


The TANK-700/720 series is equipped with a Wi-Fi module supporting dual-band 2.4/5GHz 802.11a/b/g/n 3T3R MIMO technology which ensures an uninterrupted wireless connection and provides up to 450Mbps wide bandwidth operation. Dual-Band 2.4/5 GHz Wi-Fi 802.11 a/b/g/n 3T3R MIMO Design

   Strong Video Capability


Intel® Sandy Bridge CPU with Integrated GPU
With the DirectX 10.1/OpenGL 3.0/Full MPEG-2/WMV (VC-1)/H.264 (AVC) Hardware Encoding/Transcoding Technology, the TANK-700/720 series makes the media transcoding process more efficient and allows for easier broadcasting.

   Redundant Dual DC Power Input


Redundant Dual DC Power Input Redundant Dual DC Power Input
Redundant Dual DC Power Input Redundant Dual DC Power Input
4 COM Ports with Isolation 4 COM Ports with Isolation
CAN-bus Interface with Isolation CAN-bus Interface with Isolation
CAN-bus Interface with Isolation


   Fully Integrated I/O


TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O
TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O
TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O
TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O
TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O TANK-700 Fully Integrated I/O



TANK-700-QM67
Intel® 2nd Gen Core™ Mobile Processor
TANK-700-QM67
Datasheet
TANK-720-Q67
Intel® 2nd Gen Core™ Desktop Processor
TANK-720-Q67
Datasheet
